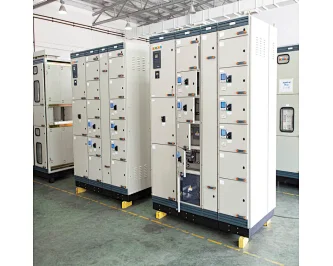

Low Voltage Fixed Type Switchboards for power distribution and motor control up to 6300A
Features:
ELECTRICAL
• Short circuit performance able to achieve up to 125kA for 1 second (275kA peak)HIGH PERFORMANCE
• Up to Form 4b form of internal separation
• Ingress Protection up to IP44
MODULAR
• The LV switchboard compact and flexible modular design conserves maximum space
• Customisable to special dimensions according to customer preferences
REGULATORY COMPLIANCE
• ASTA certificate and compliant to IEC standards 61439-1, -2; designed to meet local technical standards, practices and requirements
MECHANICAL STRENGTH
• High turn frequency of frame structure ensures greater mechanical strength and toughness
FULLY KNOCK-DOWN
• Allows for easy dismantling and assembly; parts are joined by bolts and nuts, which eliminates need for welding process
EFFICIENT SPACE UTILISATION
• Small footprint allows for compact and efficient space utilisation; facilitates front and back access
SAFETY
• Naturally ventilated, option to insert additional fans for greater heat dissipation
• 100% quality check before delivery
• Use of insulated copper busbars prevents risk of short-circuit
