This product is manufactured according to GB/T9330, IEC60227 and IEC60502, etc.

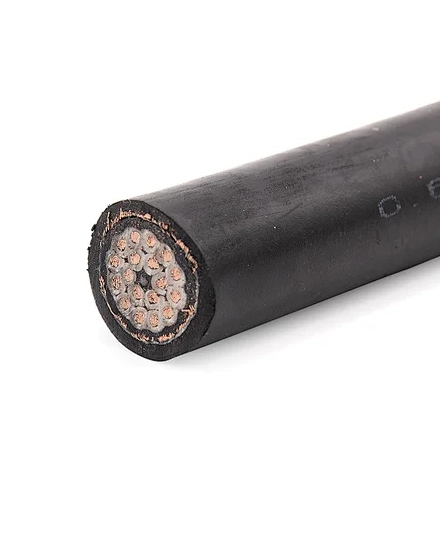

Control Cable

Model   KVV

Product Description

1. Product Standard

This flexible control cable is manufactured according to GB/T9330, IEC60227 and IEC60502, etc.

2. Application

The industrial PVC sheathed control cable is suitable for connection in control, signal, protection circuit, and measuring system with rated power-frequency voltage 450/750V or 0.6/1kV.

3. Operating characteristics

1). Rated power-frequency voltage Uo/U: 450/750V or 0.6/1kV.
2). Max. permissible continuous operating temperature of conductor: 70℃
3). Max. short-circuit temperature of the conductor shall not exceed: (5S maximum duration) 160℃

4). The ambient temperature under installation should not below 0℃ . Otherwise, the cable shall be preheated.
5). The recommended bending radius of a cable should be:

Non-armored cable, not less than 6 times of the cable diameter. Armored cable or copper tape screened cable, not less than 12 times the cable diameter. Shielded flexible cable, not less than 6 times the cable diameter.
