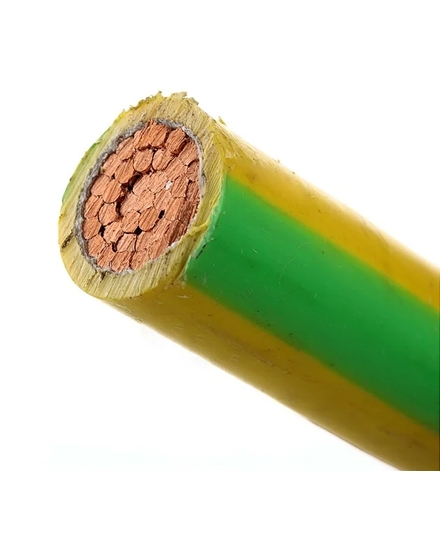

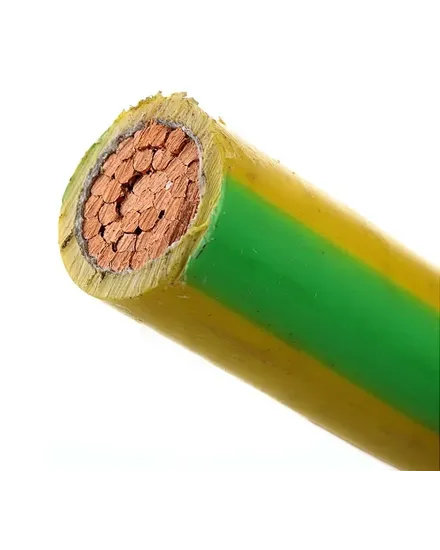

BV 450V 750V PVC Insulated Wire
BV 450V 750V PVC Insulated Wire

BV 450V 750V PVC Insulated Wire

Model NO.
BV
PVC insulated wires are suitable for laying at the fixed places for rigid conductor, and can mobile use for flexible class 5 conductor. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
Quantity:
1. Application

PVC insulated wires are suitable for laying at the fixed places for the rigid conductor, and can mobile use for flexible class 5 conductor. The PVC insulated copper wire is widely used in connecting power device, lighting, daily electrical appliance, instrument etc.with AC rated voltage up to and including 450/750V(U0/U).

2. Standard

The PVC insulated aluminum wire implements the standards GB/T5023,equivalent to IEC60227.And it can also be made complying with ASTM,DIN, BS standards etc.In addition,we can design and manufacture the single core aluminum wire as the requirements of customers.

3. Brief construction

1) Conductor: Copper or aluminum, class 1,2 or 5.

2) Insulation: PVC

3) Number of cores: Single-core

4) Other special characteristics: Design and manufacture according to the requirements of customers.

4. Service performance

1) Rated voltage: 450/750V

2) Long-term working temperature: not be higher than 70°C

3) When laying the cable, the ambient temperature should not lower than 0°C

4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
