Flexible Copper Screened Mining Cable Type 41
41
APPLICATIONS
Electrically driven machines, movable electric apparatus in hazardous areas. For small pumps, fans, drills 2.5
mm2. For shuttle cars 16 mm2. Types 16, 25 mm2 suitable for reeling
Electrically driven machines, movable electric apparatus in hazardous areas. For small pumps, fans, drills 2.5
mm2. For shuttle cars 16 mm2. Types 16, 25 mm2 suitable for reeling
Quantity
CONSTRUCTION
Conductors
Flexible class 5 comply to SANS 1411 - 1 from tinned annealed copper wires left lay
Insulation
Ethylene propylene thermosetting compound type RD 3 comply to SANS 1411-3.

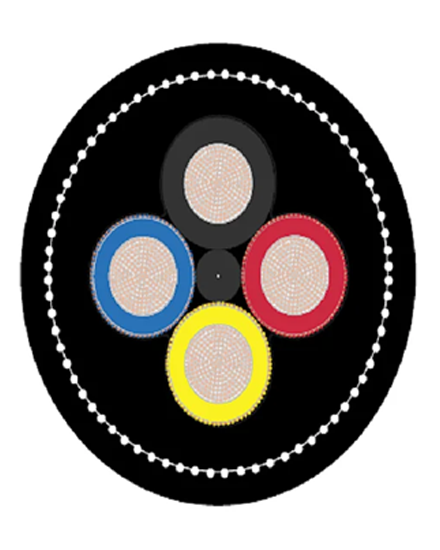

Core of cable
Three tinned copper/nylon braid screened power cores and one unscreened pilot
core laid up in the right hand lay around rubber (RD1) filler centre.
Inner sheath
Poly-chloroprene thermosetting compound type RS 6 comply to SANS 1411-3.
Re-enforcement
An open nylon braid . Minimum 16 of nylon strings.
Outer sheath
Poly-chloroprene thermosetting compound type RS 6 comply to SANS 1411-3 .
Inner and outer sheath are bonded to provide proper torsional protection , black.
Conductors
Flexible class 5 comply to SANS 1411 - 1 from tinned annealed copper wires left lay
Insulation
Ethylene propylene thermosetting compound type RD 3 comply to SANS 1411-3.
Core of cable
Three tinned copper/nylon braid screened power cores and one unscreened pilot
core laid up in the right hand lay around rubber (RD1) filler centre.
Inner sheath
Poly-chloroprene thermosetting compound type RS 6 comply to SANS 1411-3.
Re-enforcement
An open nylon braid . Minimum 16 of nylon strings.
Outer sheath
Poly-chloroprene thermosetting compound type RS 6 comply to SANS 1411-3 .
Inner and outer sheath are bonded to provide proper torsional protection , black.
