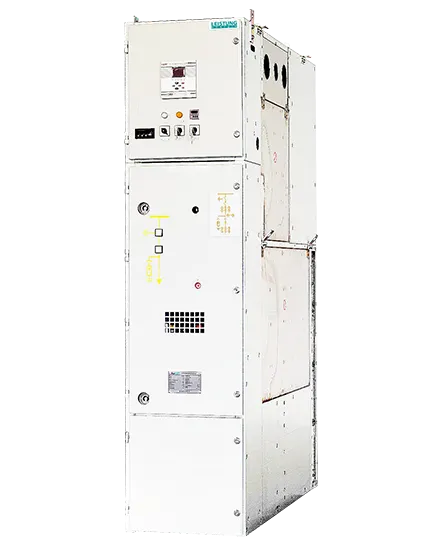

GIM gas insulated switchgear is a new generation of double gas tank gas-insulated switchgear designed and developed by Leistung Energie. It adopts advanced high-voltage composite insulation and gas sealing technology, combined with reliable production process, to meet the requirements of usage in various harsh environmental conditions, and provide the best solution to users.

GIM Gas Insulated Metal-enclosed Switchgear

Model   GIM

Product Description

GIM gas insulated switchgear has complete specifications and excellent performance parameters:
• Rated voltage: 40.5kV
• Rated current: up to 2500A
• Rated short circuit breaking current: up to 31.5KA
• Rated peak withstand current: up to 80kA
• Annual leakage rate of SF6 gas: ≤ 0.1%
• Gas box protection level: up to IP65Product features
The GIM gas insulated switchgear adopts SF6 gas, with excellent insulation performance, as the insulation medium, integrates high-voltage components such as bus, isolation / grounding switch, vacuum circuit breaker, measurement and protection transformer, cable connectors etc. as one body, completely enclosed in the metal shell filled with SF6 gas, so that it has the following functional characteristics to meet the needs of users for high performance and quality.

Application Description

• Power plant and power grid system in polluted and humid environment in coastal area
• Plateau substation in high altitude and cold environment of inland area
• Large industrial and mining enterprises such as petrochemical and metallurgical enterprises
• High rise buildings in densely populated areas and cities
• Urban infrastructure projects, such as subway, etc.
