These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.

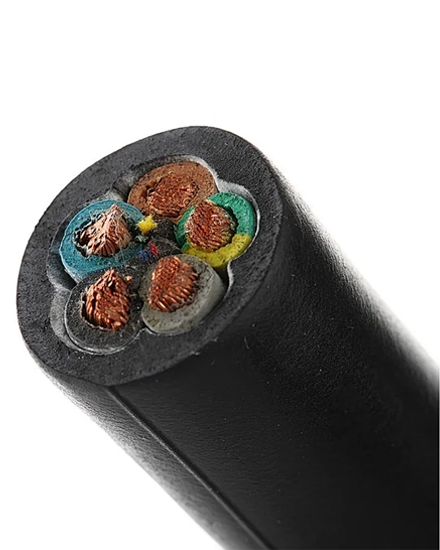

H07RN-F IEC 60245, BS EN 50525-2-21 Flexible Rubber Cable

Model   H07RN-F

Product Description

This outdoor insulated flexible rubber cable is designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications of outdoor flexible rubber cable include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. The outdoor flexible rubber cable Also for use in drainage and water treatment, cold environments and severe industrial environments.

Parameters

Voltage Rating U/Uo
450/750V
Temperature Rating
Fixed: -30°C to +60°C
Fixed protected installations: +85°C
Flexed: -15°C to +60°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 6 x overall diameter
