The product scheme is customized one-to-one according to the personalized and diversified needs of customers.

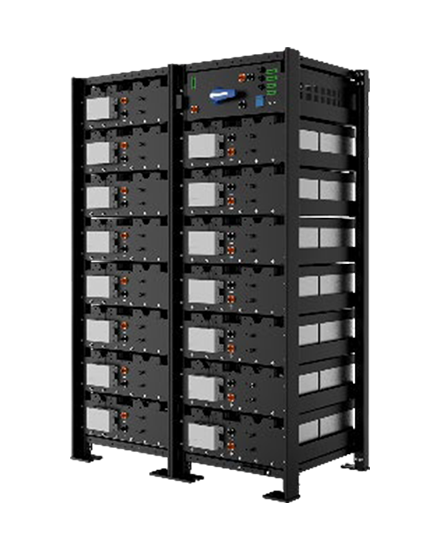

Industrial & Commercial Energy Storage System LBS200C
Model LBS768200C-A02
Product Description
1. Modular structure design is able to compose varieties of electric voltage platform flexibly, all kinds of capacity level systems, and easy to maintain or repair.
2. The design of battery management system provides the highest reliability.
3. Making use of lithium iron phosphate batteries with high safety character, long cycling life, and more than ten years service life.
4. Small size, light weight, convenient to transport and deliver, and can be quickly equipped to all kinds of occasions.
| Rated Voltage | 768V |
| Rated Capacity | 200Ah |
| Rated Energy | 153.6kWh |
| Configuration | 2P*16S*15S (fifteen 2P16S battery boxes in series collection) |
| Operating Voltage Range | 672 ~ 864V |
| Net Weight | ~ 1800kg |
| Dimensions (Width*Length*Height) | 1192*710*1800mm |
| Operating Temperature Range | Charge: 0℃ ~ 55℃ Discharge: -20℃ ~ 55℃ |
| Operating Relative Humidity | 20% ~80% |
| Storage Temperature Range | -20 ~ 55℃ |
| Altitude | <2000m |
| Cycle Life | 5300 (0.5C/0.5C, 70%DOD) |
| Certification | - |
Application Description
The design scheme is widely used in medical, industrial, power, forklift, energy storage, communication, security, transportation, logistics, consumer electronics and other fields.
