Aerial Bundled Conductor cables can be used to replace bare conductor cables in overhead distribution systems. It is ideal for use in urban areas with congested power distribution and narrow lanes and by-lanes. The flexible system is much easier than conventional overhead power lines to re-route when demanded by changes in urban development plans.

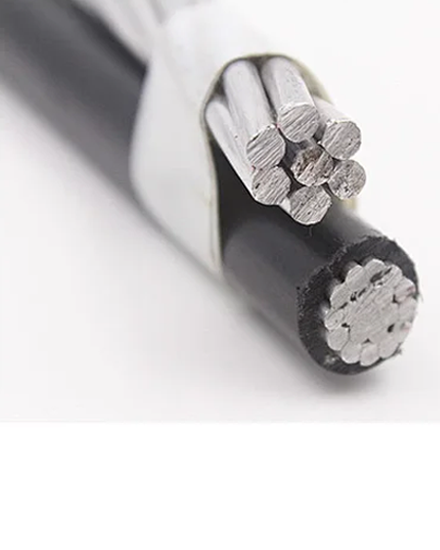

LV Aerial Bundled Conductor (ABC) Cable

Model   LV ABC

Product Description

1. Application: Aerial Bundled Conductor cables can be used to replace bare conductor cables in overhead distribution systems. It is ideal for use in urban areas with congested power distribution and narrow lanes and by-lanes. We offer UV-resistant aerial bundled cables to buyers around the world. We have strong design capabilities and quality control capabilities to ensure the quality of our lv ABC cables.

The flexible system is much easier than conventional overhead power lines to re-route when demanded by changes in urban development plans.
2. Standards: Basic design to BS 7870 / TNB Specification(IEC 60502) / HD 626 S1 / NFC 33-209 / AS/NZS 3560-1



4. Construction
a.Conductor: Aluminium conductor, round stranded compressed (RM).
b.Insulation: XPLE compound, UV-resistant.
c.Core Identification: 1,2 resp.3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm^2 and a minimum of 16 ribs for cores above 50 mm^2. In the case of five core bundles the surface of the protective core should be smooth.
possible insulation colors：
5. Technical data

Rated Voltage: 0.6/1kV
Test Voltage: 4 Veff kV
Minimum Laying Temperature: -20°C
Operating Temperature: -40°C~ +90°C
Maximum Short-circuit Temperature: 250°C
Maximum Conductor Temperature: 80°C
Minimum Bending Radius: 18×OD
