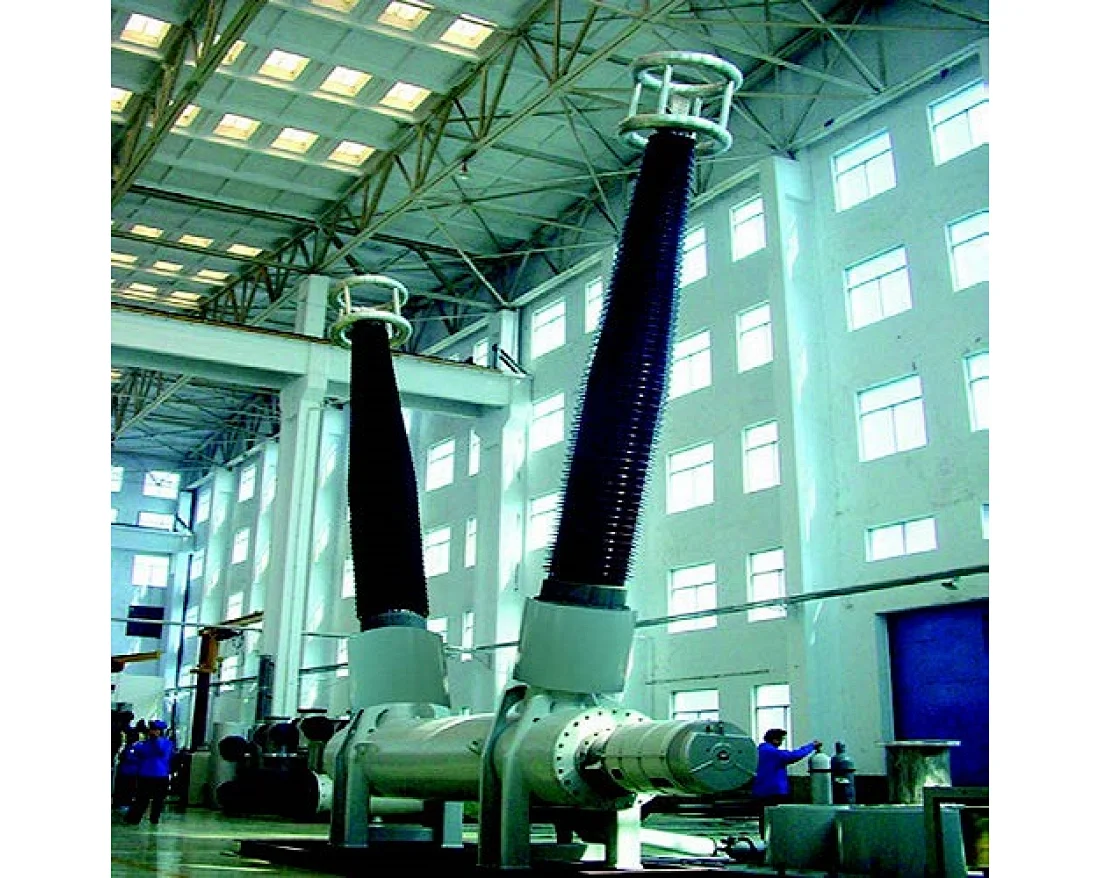

LW 550kV SF6 Circuit Breaker
LW 550kV SF6 Circuit Breaker
LW 550kV SF6 Circuit Breaker

LW 550kV SF6 Circuit Breaker

Model NO.
LW 550
This product is a three-phase AC 50Hz outside HV switch, applies to control and protect of 550kV transmission system, and also can be used as a circuit breaker and opening & closing capacitor bank, and abides by GB7674-1997 and IEC60517.
Quantity:

Structure and Features:
▪A circuit breaker is the horizontal layout,double-fracture structure,equips HMB-8.3 type hydraulic springs operating mechanism,the mechanism deployed in the tank side,with the body connected with a straight dynamic seal,double fracture in a series arrangement,the mechanism through the insulating rod to drive operation,and the other insulating rod fracture and a fracture to achieve tandem.
▪Arc extinguish chamber through outlet bushing to connect high-voltage lines, feed-through type current transformer install between the tank and the outlet pipe.
▪Self-energy-type Arc extinguish chamber, short-circuit breaking currents up to 60kA, arcing time is short, the operation is low noise
▪Continuous breaking 63kA short-circuit current 20 times without repair
▪Equipped with ABB manufacturing HMB-8-type spring hydraulic operating mechanism, safe and reliable, continuous operation without maintenance for 10000times.
