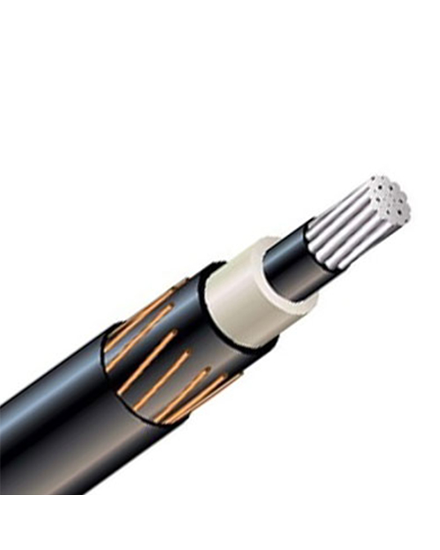

MV-90 Or 105 XLPE Insulation Type
MV-90 Or 105 XLPE Insulation Type

MV-90 Or 105 XLPE Insulation Type

Model NO.
MV-90
Application Primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry locations, installed in underground, duct, or direct burial.
Quantity:
The medium voltage power cables application Primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where the line to ground fault current are within shield capabilities. standards ul power cables may be used in wet or dry locations, installed in the underground, duct, or direct burial.



Standards UL 1072 Medium Voltage Power Cables.

ICEA S-94-649 5 kV – 46 kV Shielded Power Cables.

AEIC CS8 Standard for Utility Shielded Power Cables Rated 5 kV – 46 kV.



Specifications

Maximum operating voltage:

• 5 kV to 46 kV 100% and 133% IL Maximum conductor operation temperatures:

Wet and dry locations

• Normal: 105 °C

• Emergency: 140 °C

• Short Circuit: 250 °C
