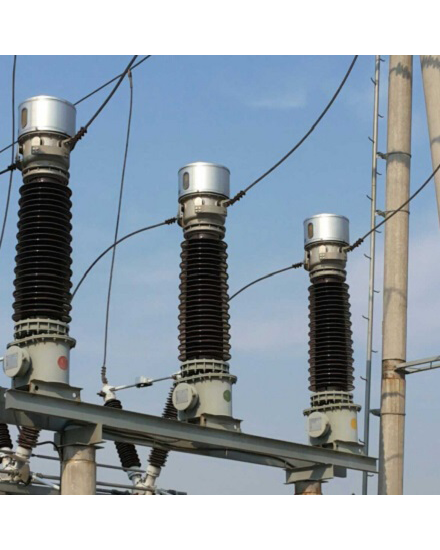

Oil Immersed Vertical Current Transformer
Oil Immersed Vertical Current Transformer

Oil Immersed Vertical Current Transformer

Model NO.
LB
LB series of oil immersed vertical current transformers are the vertical and fully closed structure, mainly by the expander, a terminal, porcelain sets, primary winding, secondary winding, fuel tank and other parts, the lower part of the oil immersed current transformer with grounding plate for products Ground, with a drain valve for oil samples.
Quantity:

LB series of oil immersed vertical current transformers are the vertical and fully closed structure, mainly by the expander, a terminal, porcelain sets, primary winding, secondary winding, fuel tank and other parts, the lower part of the oil immersed current transformer with grounding plate for products Ground, with a drain valve for oil samples.

The maximum wind speed does not exceed 34m/s; for the seismic intensity of not more than 8 (the maximum temperature of 25℃); the maximum wind speed of not more than 34m/s; Of the region.


The vertical current transformer insulation performance:80% of the partial discharge under the power frequency voltage is not greater than 5pC; dielectric loss factor is low, the process does not rebound; one can achieve multiple turns, easy to meet the current relatively small hours of precision requirements; Can be used to meet a number of test oil; low center of gravity, good seismic performance for an earthquake; reliable structure, stable operation.
