The single-core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 3.8/6.6KV to 19/33KV and frequency 50Hz.They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards, and power stations.

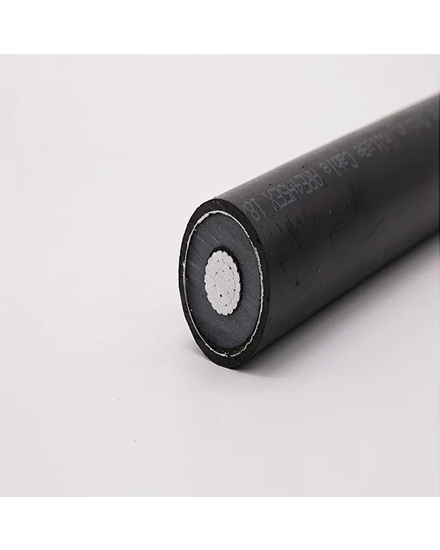

Power Cables From 6kv Up To 35kv Armoured Or Not

Model   MV6-35

Product Description

CU/XLPE/CTS/PVC or CU/XLPE/CWS/PVC Or Cu/XLPE/CTS/PVC/AWA /HDPE or Cu/XLPE/CWS/PVC/AWA/MDPE

1 Application: The single-core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 3.8/6.6kV to 19/33kV and frequency 50Hz. The single-core armored power cables are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards, and power stations

2 Standards: BS 6622/BS 7835 IEC60502-2 Standard

3 Construction:

Conductor: Plain annealed copper or aluminum complying with IEC 60228/BS 6360.

Inner Layer: Semi-conductive conductor screen

Insulation: XLPE (Cross-Linked Polyethylene) or EPR

Outer Layer: Semi-conductive core screen

Metallic screen: copper tape screen or a copper wire screen

Inner sheath: Polyvinyl Chloride (PVC) bedding material, optional

Armor: Aluminum wire/tape armor for single-core, galvanized steel wire/tape for 3 cores. optional

Outer sheath: PVC/PE/LSOH, flame retardant, UV resistance, or termite protection is optional.
