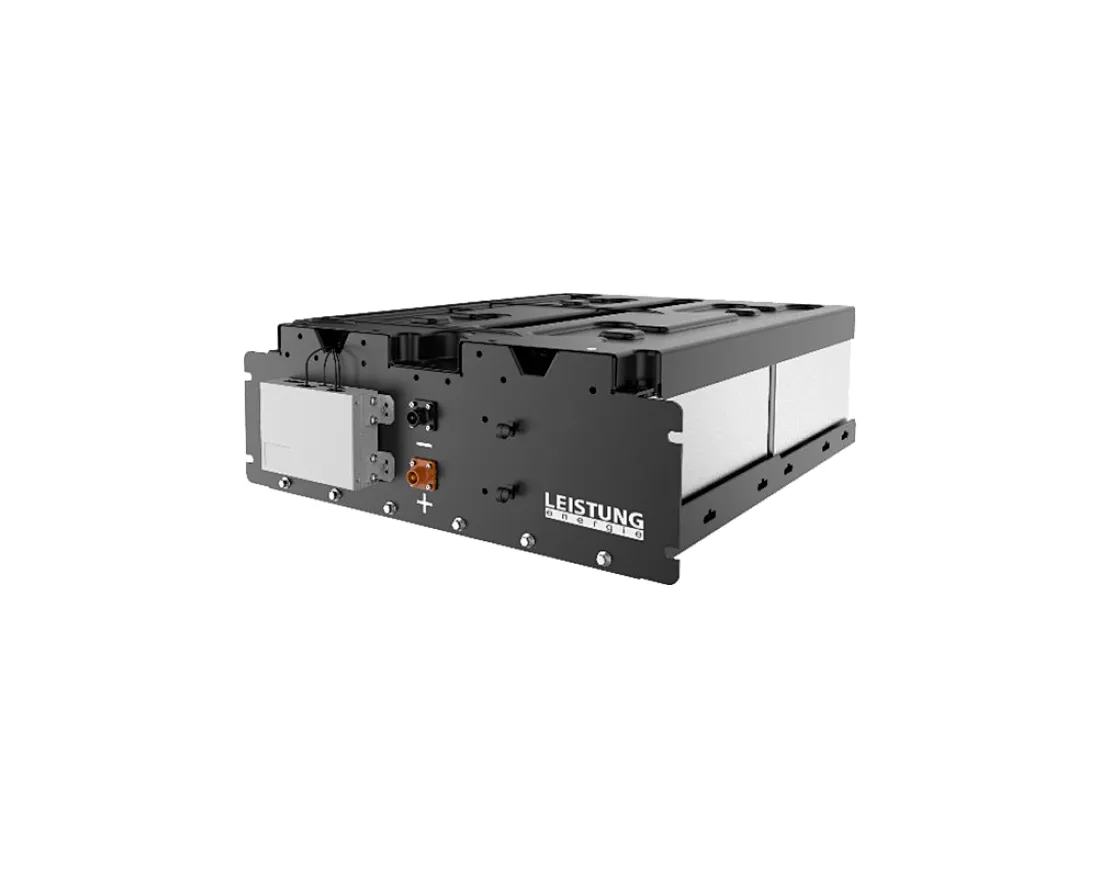

Industrial & Commercial Energy Storage System LBB200C
LBB051200C
The product scheme is customized one-to-one according to the personalized and diversified needs of customers.
Quantity
1. Modular structure design is able to compose varieties of electric voltage platform flexibly, all kinds of capacity level systems, and easy to maintain or repair.

2. The design of battery management system provides the highest reliability.

3. Making use of lithium iron phosphate batteries with high safety character, long cycling life, and more than ten years service life.

4. Small size, light weight, convenient to transport and deliver, and can be quickly equipped to all kinds of occasions.


Rated Voltage51.2V
Rated Capacity200Ah
Rated Energy12.24kWh
Configuration2P16S (four 2P4S modules, 2 in series collection, 2 in parallel collection)
Operating Voltage Range44.8 ~ 57.6V
Net Weight~ 95kg
Dimensions (Width*Length*Height)540*710*200mm
Operating Temperature RangeCharge: 0℃ ~ 55℃
Discharge: -20℃ ~ 55℃
Operating Relative Humidity20% ~80%
Storage Temperature Range-20 ~ 55℃
Altitude<2000m
Cycle Life6000 (0.5C/0.5C, 70%DOD)
CertificationUN38.3
