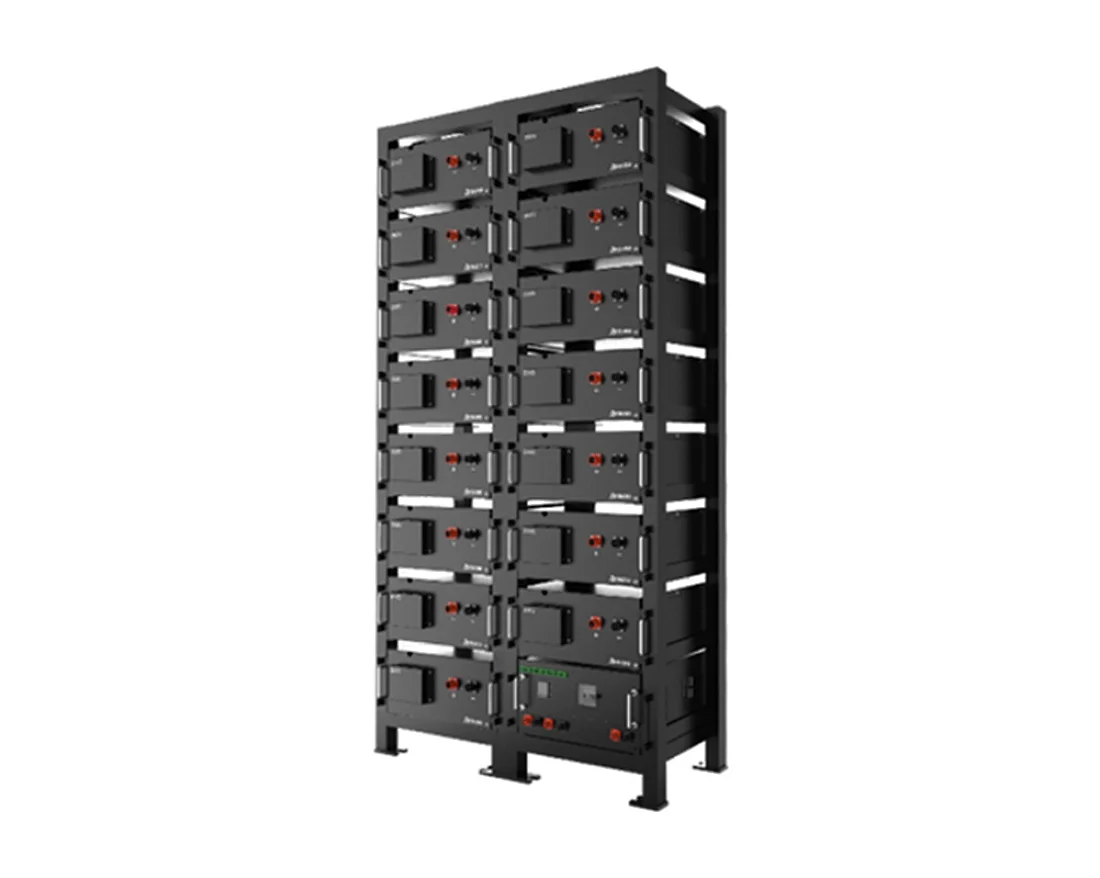

Industrial & Commercial Energy Storage System LBC100
LBC100 Series
The product scheme is customized one-to-one according to the personalized and diversified needs of customers.
Quantity
1. Modular structure design is able to compose varieties of electric voltage platform flexibly, all kinds of capacity level systems, and easy to maintain or repair.

2. The design of battery management system provides the highest reliability.

3. Making use of lithium iron phosphate batteries with high safety character, long cycling life, and more than ten years service life.

4. Small size, light weight, convenient to transport and deliver, and can be quickly equipped to all kinds of occasions.

Rated Voltage51.2V* (5 ~ 15)
Rated  Capacity100Ah
Rated Energy5.12* (5 ~ 15) kWh
Configuration(5 ~ 15) Battery Boxes and 1 Control Box
Operating Voltage Range44.8V* (5 ~ 15) ~ 57.6V* (5 ~ 15)
Net Weight 350 ~ 920kg
Dimensions (Width*Length*Height)1110*420*[(3 ~ 8)*230+190] mm
Operating Temperature RangeCharge: 0℃ ~ 55℃
Discharge: -20℃ ~ 55℃
Operating Relative Humidity20% ~80%
Storage Temperature Range-20 ~ 30℃
Altitude<2000m
Cycle Life>10 years
Certification-
