These Type 441 Class 2 Mining cables are designed for many uses, suitable for trailing and also suitable for reeling applications, have one central pilot and a semi conductive cradle supporting and protecting the power cores, which makes these cables less likely to be damaged from crushing and squashing.

Type 441 (class 2) 1.1 1.1kV Mining Cable

Model   441

Product Description

Applications

These Type 441 Class 2 PCP sheath mining cable is designed for many uses, suitable for trailing and also suitable for reeling applications, have one central pilot and a semi conductive cradle supporting and protecting the power cores, which makes these flexible insulated mining cable less likely to be damaged from crushing and squashing.

Standard

AS/NZS 2802 : 2000
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

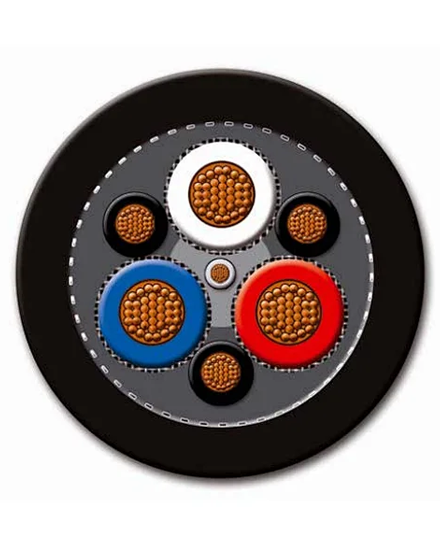

Construction

3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen: polyester barrier tape.
Insulation: EPR.
Insulation Screen: Semi conductive tape.
Cradle Separator: Semi conductive PCP.
Overall Core Screen: Semi conductive PCP filling and covering.
3×Interstitial Earth Conductor: Semi conductive PCP insulated flexible stranded tinned copper conductor.
1×Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor.
Textile Reinforcement: Open-weave braid reinforcement.
Sheath: Heavy duty PCP sheath.
